V-FullWaver

2ch, 10ms, 70 days storage

Table of contents

The V-FullWaver systems were specifically developed for precise full waveform time domain Induced Polarisation, Resistivity and SP measurements. Each system is fully independent; incorporating its own power source, GPS module and digital memory for up to 3 months continuous recording.

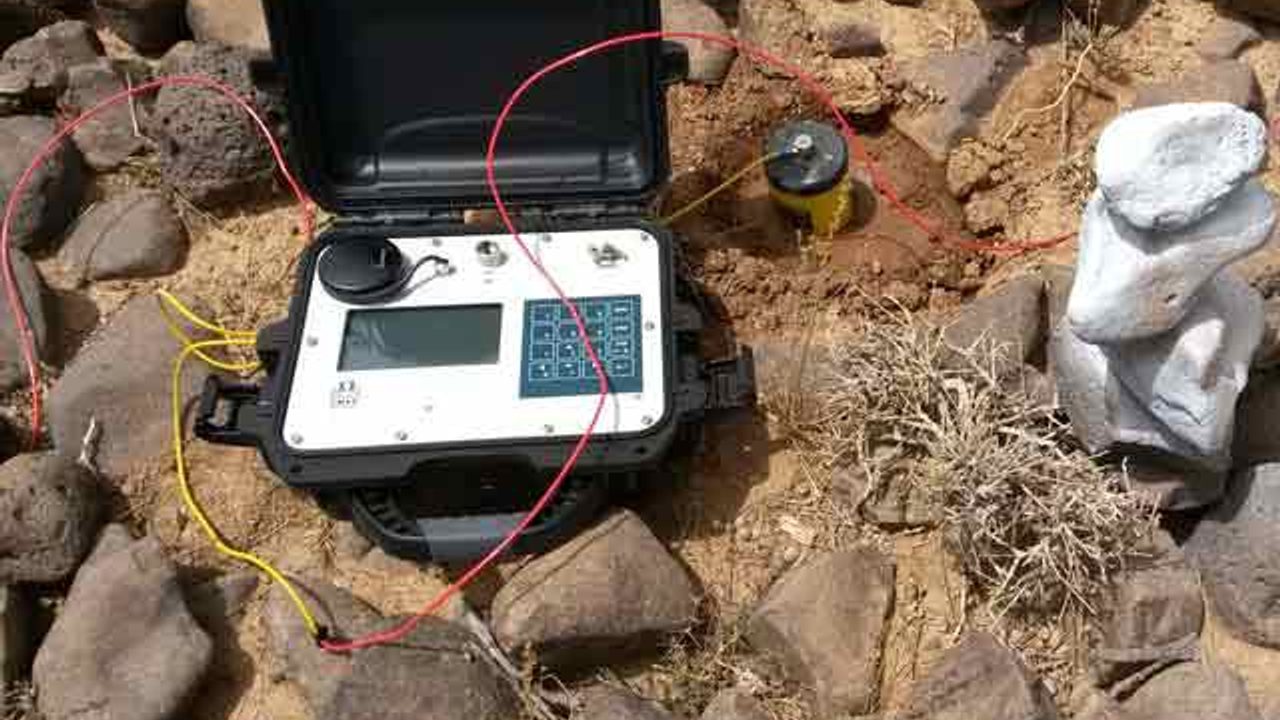

The V-FullWaver is a dual channel Induced Polarisation, Resistivity and SP receiver. Continually recording at 10ms sample rate provides a full waveform record. It can be synchronized on the GPS PPS signal, allowing an easy process of the signal. Data on the memory can be downloaded directly on a simple USB stick from all the Fullwavers.

The timeseries recorded by the I&V FullWavers can be post-processed on the dedicated software FullWave Viewer that allows to adapt the processing according to the signal/noise ratio, to focus on stable and accurate parts of the signal, to remove SP spikes and to resynchronize the data if necessary. This software allows also for a rapid automatic process of the data and thus for exporting resistivity and chargeability data to compute a first 3D model in few minutes.

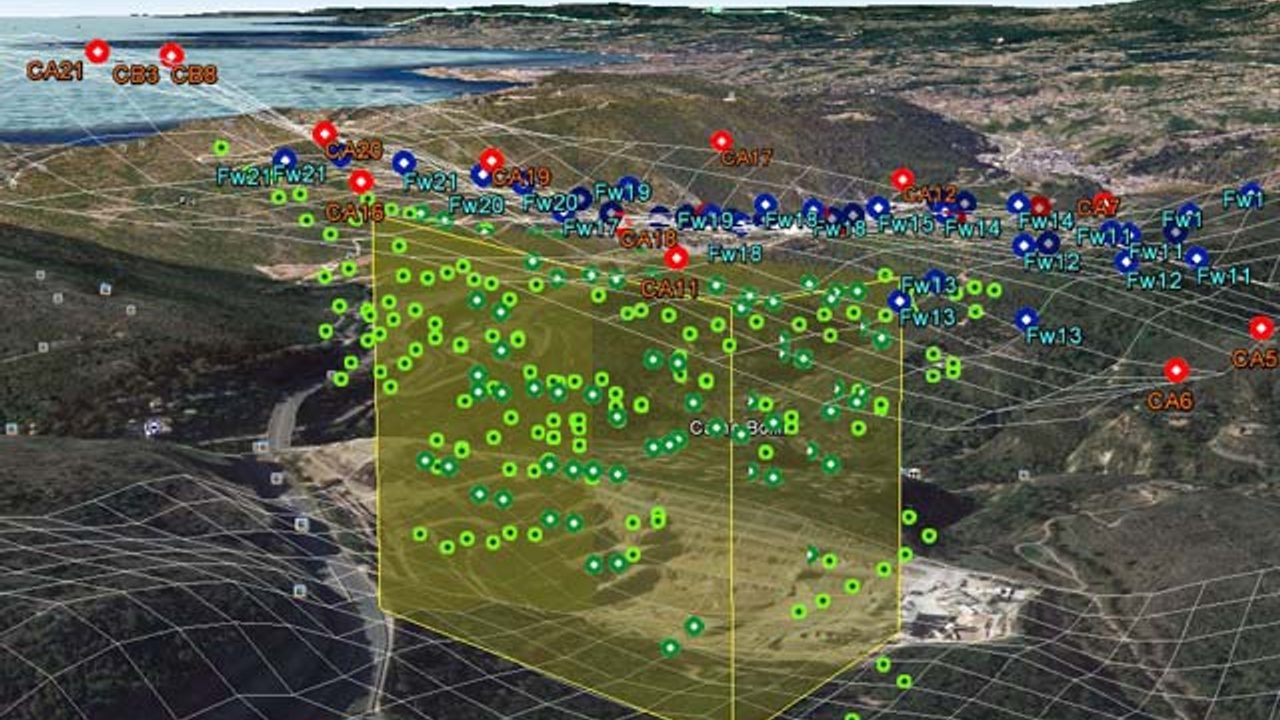

The FullWaver devices have been designed for the measurement of resistivity, IP and PS on large 3D surfaces which can be affected by sharp topography. Depending on the size of the area to investigate, 10 or more V-FullWaver devices can be randomly located on the surface of investigation performing a continuous measurement. In the meantime, the operator moves a transmitter (typically VIP) and the I-FullWaver on the same surface to perform different injection. At the end of the day, the data has to be copied on a USB key from each FullWaver. If the electrode coordinates have been entered in the devices, a first automatic process can export the resistivity and IP data in Prosys II. You can therefore obtain a first 3D model in few minutes while keeping the possibility to re-process the entire dataset.

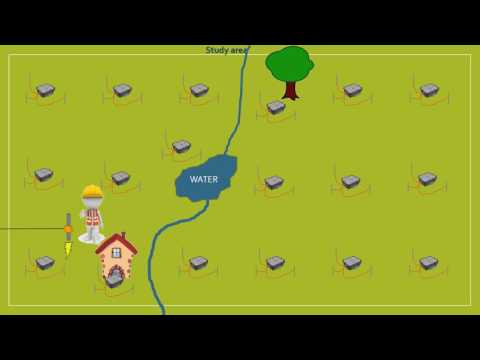

The following video summarizes the operating procedure of the use of the V-FullWaver with any IP transmitter and resumes the main advantages of this sytem compared to non-autonomous systems.

Operating procedure of I and V-Fullwaver

Operating procedure of I and V-Fullwaver

Operating procedure of I and V-Fullwaver

Softwares

Applications

Water ressources

Environment

Natural hazard

Mineral exploration

      Characteristics

      Receiver
      Pulse duration1s, 2s, 4s or 8s
      Channels2 channels
      Input impedance100 MOhms
      Input voltage15V, automatic gain, input protection 1000V
      Resolution / Accuracy1 µV / 0.2%
      GPSGPS input for coordinates and synchronisation
      Readingsfull waveform 10ms (100Hz) sampling rate, resistivity, self-potential
      Noise Rejectionpower line rejection, SP linear drift correction.
      Storageup to 70 days 2 channels full waveform, stored on solid state memory
      Dimensions
      ( L x W x H )31x25x15 cm Fiber glass casing, weather proof
      Weight3Kg with internal RX battery
      Operating Temp.-20 to +70°C
